Unique Micro Design - Intermec - EA30 2D Module <br> Bar Code Reader - OEM Engine

Intermec - EA30 2D Module
Bar Code Reader - OEM Engine

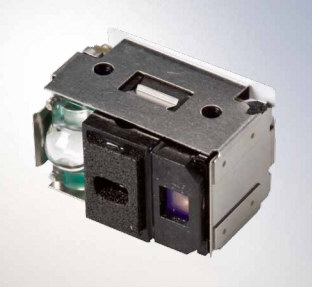

The EA30 is a compact, high-performance, white LED, decoded 2D barcode imager. Its small size makes it ideal for OEM applications in both mobile and fixed devices.

Terminals, PDAs, lottery terminals, time and attendance terminals, ski-pass, automated sorting machines and tape libraries are examples of where the EA30 will be right at home in your OEM application.

Features

  • Omnidirectional bar code reading
  • Up to 180 scans per second in linear emulation mode or
  • Up to 60 scans per second in omnidirectional mode
  • Supports all common 1D & 2D barcodes
  • Bright scan aim line
  • Low power 3.3V operation
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • 12 month Warranty

Specifications

Mechanical
Dimensions 13 mm (h) x 15.3 mm (d) x 22 mm (w)
Weight <10g
Environmental
Operating Temp. -20 to 50°C
Storage Temp. -40 to 70°C
Relative Humidity 0% to 95%(non-condensing, at 60° C)
Vibration 8G r.m.s., from 10Hz to 500Hz, 2 hours/axis, 3 axes
Shock 2000G, 0.7ms, half sinus, 3 axes
Electrical
Voltage 3.3 V/DC ±5%
Operating Current 300 mA at 3.3 V scanning(Typical)
Hibernate Current <2mA
Optical
Scan Rate 2D mode: Upto 60images per second, auto adaptive
Linear emulation mode: Upto 180 images per second, auto adaptive
Optical Resolution 752 (H) x 480 (V) pixels, 256 gray levels
Scan Angle Horizontal: 34.4°
Vertical: 22.2°
Print Contrast Ratio 30% (minimum)
Motion Tolerance Up to 12.7m/s
Depth of field
(1D Scanning)		 70 mm to 750 mm
Depth of field
(2D Scanning)		 60 mm to 320 mm
Symbologies Decoded
1D symbologies: EAN/UPC, GS1 Databar(Limited/Expanded/Omni), RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes.
2D symbologies: Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec, GS1 Composite
Communications
Protocol USB Interface with Intermec Scanner Control Protocol (ISCP)
Certifications
Regulatory Approvals UL, cUL, VDE, Class 2 Laser/LED, RoHS
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] EA30 OEM Scan Engine
3-343012-00 EA30-SM-USB Barcode Scan Engine (EA30+ED40 mounted) $407.00 C
[B] Accessories
[C] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
