Denso - BHT-900
Hand Held Terminal - Computer
 |

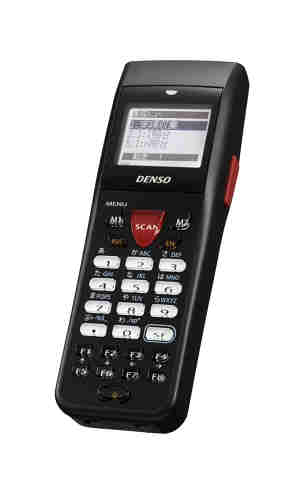

The BHT-900 batch terminal is the latest in slimline, ergonomic design from Denso. This terminal comes equipped with an advanced scanning system to read wide, high density and poor contrast labels, a large liquid crystal display and large resin keys, suitable for use with gloves. Features
|
|---|
Specifications
| BHT-904B | BHT-904BB | ||||
|---|---|---|---|---|---|
| Control Unit | |||||
| CPU | 32 bit RISC micro processor | ||||
| Memory | 2MB RAM, 16MB Flash | ||||
| Display Unit | |||||
| Display Type | Liquid crystal dot matrix monochrome display | ||||
| Pixel Size | 128 x 96 dot | ||||
| Alphanumerics | 21 Characters by 12 Lines/21 Characters by 16 (Small Font) | ||||
| Backlight | LED (White) | ||||
| Scanner | |||||
| Method | Advanced Solid State Scanner | ||||
| Scanning Area | 40 mm - 540 mm | ||||
| Readable Bar Codes | EAN-13/-8 (JAN-13/-8), UPC-A/-E, UPC/EAN (With add-on), Interleaved 2 of 5, Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), RSS (GS1 DataBar) | ||||
| Resolution (Min.) | 0.125mm | ||||
| Reading Confirmation Options | Blue/Red/Green LED | ||||
| Buzzer | |||||
| Vibrator | |||||
| Keypad | |||||
| No. of Keys | 26 keys (including power key) 2 trigger keys | ||||
| Communications - Optical | |||||
| Communications system | Infra-red (IrDA-SIR Ver.1.2〔Low Power〕compliant) | ||||
| Transmission rate | 460.8kbps MAX. | ||||
| Communications - Wireless | |||||
| Standard | Bluetooth Ver2.1+EDR(SSP, DUN) Powerclass 2 | ||||
| Wavelength | 2.4 GHz Band | ||||
| Distance | 10 m | ||||
| Conversion Method | FHSS | ||||
| Communications - Interface Cable | |||||
| Cable Interface | USB Ver.2.0 (High Speed 480Mbps) | ||||
| Auxiliary Functions | |||||
| Standard | Calendar clock, beeper, vibrator, resume, low battery, remote wake-up | ||||
| Powers Supply | |||||
| Main Battery | Alkaline AA battery × 2 or AA eneloop battery × 2 | ||||
| Environmental | |||||
| Operating Temperature | -5 - 50ēC | ||||
| Drip Proof | JIS drip-proof II | ||||
| Dust & splash resistance | IP54 | ||||
| Weight | Approx. 160 g | ||||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] BHT-900 Terminal Kits | ||||
| BHT-900-ST1 | BHT-904B-KIT | BHT904B Batch Terminal, eneloop rechargable batteries, USB cable and Easy Pack Ad (Stocktake ready software) out fo the box) | $825.00 | G |
| BHT-900-ST2 | BHT-914B-KIT | BHT914B Lite Batch Terminal with eneloop rechargable batteries, USB cable and Easy Pack Ad (Stocktake ready software) out fo the box) | $803.00 | G |
| [B] Communication Units | ||||
| CU-921-KIT | CU-921-KIT | CU-921 - USB charging cradle kit with USB cable & AC adaptor | $187.00 | G |
| CU-901-KIT | CU-901-KIT | CU-901 - Serial (RS232) charging cradle kit with RS232 cable & AC adaptor | $264.00 | G |
| [C] Accessories | ||||
| M299991770 | BHT900-SC | Soft Case | $110.00 | C |
| M299991780 | BHT900-HO | Holster | $121.00 | C |
| Batteries | ||||
| BK-3MCCE/2BA | Eneloop AA x 2 Rechargable Batteries | $22.00 | C | |
| 1-7020-012-6 | BAT-001/2 | Battery, Alkaline , AA (Pack 2) | $9.90 | B |
| [D] Replacement Parts | ||||
| 496331-2060 | BHT-900 Battery Cover | $22.00 | C | |
