Unique Micro Design - Denso - BHT1200 Series <br> Hand Held Computer

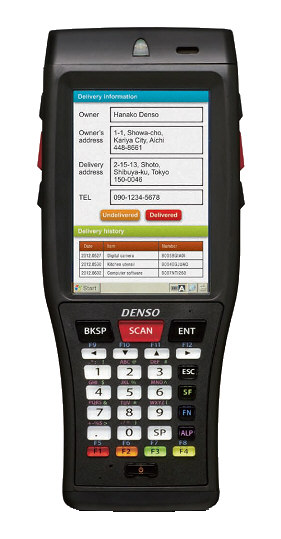

Denso - BHT1200 Series
Hand Held Computer


The Denso BHT-1200 Series of Bar Code Handy Terminals are versatile, rugged devices that combine the functionaliy of Windows.NET architecture, a sunlight readable color screen, an IP54 rated housing and is shock resistant to withstand multiple drops from 1.5m onto concrete.

Features

  • HVGA Colour LCD panel
  • Windows CE 6.0 R3
  • 1D or 2D scanning options
  • Secure QR-Code reading capable with 2D models
  • Multiple trigger keys
  • IP54 rated
  • HSPA+ 3.75G option
  • IEEE802.11b/g/n Radio Networking
  • Bluetooth V2.0 + EDR
  • 2300mAh Standard or 3450mAh high capacity LiIon Battery
  • 12 Months Warranty

Specifications

 BHT-1261BWB-CEBHT-1261QWB-CEBHT-1261QWBG-CE
 Physical Characteristics
Length
178 mm
178 mm
186 mm
Width
77 mm
Depth
38 mm
43 mm
43.3 mm
Weight
Approx. 330g
Approx. 340g
Approx. 370g
 Power
Main Battery
Lithium Ion Battery
Battery Life
Standard
Extended

Approx. 23 hours
Approx. 34 hours

Approx. 22 hours
Approx. 33 hours

Approx. 18 hours(8 hours WWAN)
Approx. 26 hours(12 hours WWAN)
 Hardware
Ram
512MB RAM
Flash ROM
2.0 GB
Processor
ARM Coretex-A8 (800 MHz)
Display
Colour 3.5" HVGA Backlit LCD (320 x 480 pixels)
User Interfaces
Resistive Touch Panel (Passive pen or finger input)
30 keys (excluding the power key) + 3 trigger keys
Barcode Reader
Denso Advanced Scan Plus
Denso Area Sensor
Barcodes
All Standard 1D Barcodes
All Standard 1D, Stacked and 2D Barcodes
 Software
Operating System
Windows CE 6.0
 Indicators
LED Indicator
Tricolour LED (red, blue,green)
Audible
Buzzer
Tactile
Internal Vibrator function
 Communications
Standard
IEEE 802.11b/g/n, Bluetooth 2.0
Optional
-
HSPA+ (850/900/2100MHz), GPS
 Environmental Characteristics
Temperature
-20° to 50°C
Fluid/Dust Protection
IP54
Shock Resistance
1.5 m drop to concrete
(Tested 5 times each on all 6 sides - total 30 times
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Denso BHT-1200 1D Series (Includes Hi Capacity Battery)
BHT-1200-ST1 BHT-1200 BHT-1261BWB-CE: 1D + WIFI + BT + BATT $2,079.00 G
BHT-1200-ST2 BHT-1200 BHT-1261QWB-CE: 2D + WIFI + BT + BATT $2,321.00 G
BHT-1200-ST3 BHT-1200 BHT-1261QWBG-CE: 2D + 3G + WIFI + BT + BATT $2,816.00 G
BHT-1200-ST4 BHT-1200 BHT-1261QWBG-CE: 2D + 3G + WIFI + BT + BATT $1,815.00 G
[B] Denso BHT-1200 2D Series (Includes Hi Capacity Battery)
104969-1350-L BHT-1261QWB-CE Denso BHT Terminal with 2D, Wif, Bluetooth and Camera. With high capaicty battery (38keys) $2,068.00 G
[C] Denso BHT-1200 2D, 3.75G Series (Includes High Capacity Battery)
104969-1420-L BHT-1261BWBG-CE Denso BHT Terminal with 2D, 3.75G (HSPA+), Wifi, Bluetooth and Camera. With high capaicty battery (38keys) $2,596.00 G
[D] Communication Cradles With Charger (includes Power Supply)
CU-1233-U-KIT CU-1233 Charging and Communications cradle, with additiona battery slot. RS232 & USB Interface. USB Cable and Power Adapter inlcuded $264.00 G
CU-1233-R-KIT CU-1233 Charging and Communications cradle, with additiona battery slot. RS232 & USB Interface. RS232 Cable and Power Adapter inlcuded $275.00 G
CU-1211-E-KIT CU-1211 Charging and Communications cradle, with additiona battery slot. Ethernet Interface. Power Adapter inlcuded $352.00 G
[E] 4 Bay Charging Cradle Only(includes Power Supply)
CH-1254-KIT CH-1254 4-Bay charging cradle only with power supply $572.00 G
[F] Locking Vehicle Dock
CH-C1271-KIT-DB
[G] Accessories
496461-0730 BT-120L-C High Capacity Battery with Cover $121.00 0.1
